SIP Modules

Standard or customized modules for a variety of applications

Download catalogue
M101 Wifi
M201 Wifi + BT Combo
M901 Wifi + MCU
M903 BLE + MCU
M904 BLE + MCU
Custom SIP

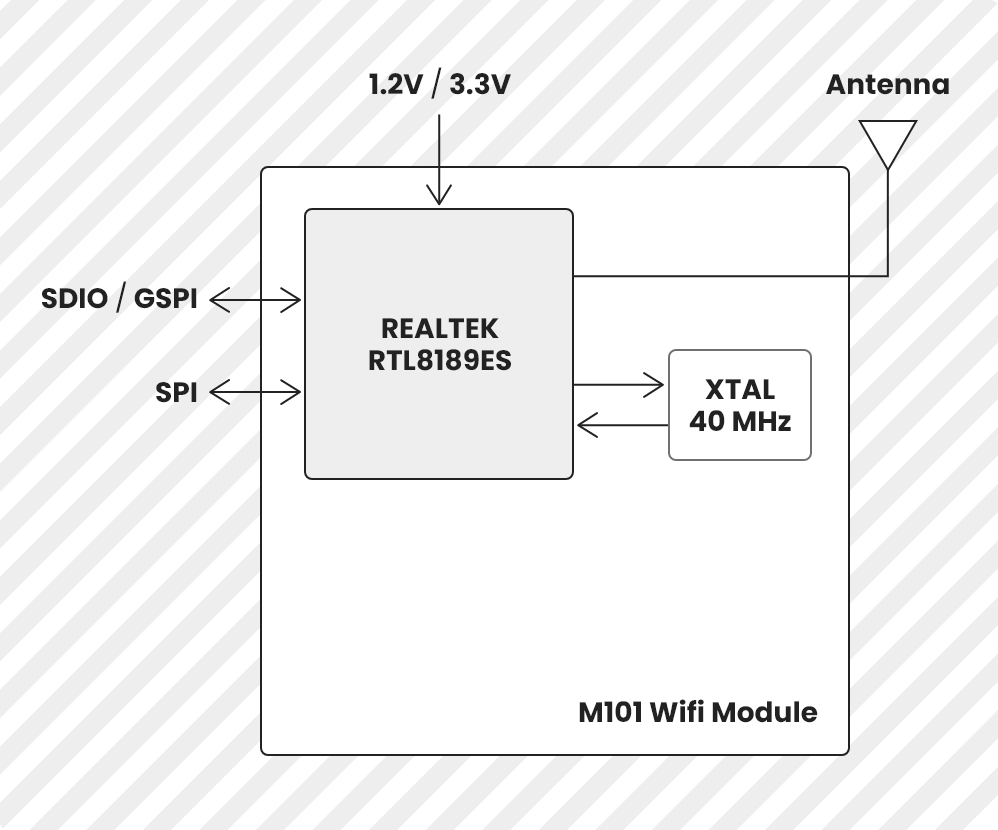

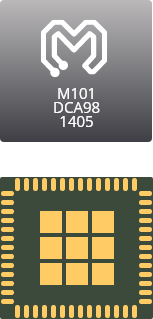

M101 Wifi module

Solution : Realtek 8189ES
Functionality : 802.11 1×1 b/g/n
Size (mm) : 9.2 x 8.3 x 1.1 mm
Package : LGA-52 pin
Power : 3.3v / 1.2v (Optional)
Interface : SDIO / GSPI

Features :

  • Complies with 802.11 b/g/n
  • Supported 20/40 MHz bandwidth
  • Supported SDIO 1.1/2.0/3.0 up to 100MHz clock rate
  • Single 3.3v Power only
  • RoHS compliant / Lead Free
  • –
  • –

Application :

  • Tablet
  • e-book
  • DSC
  • IP Camera
  • …

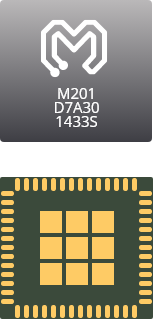

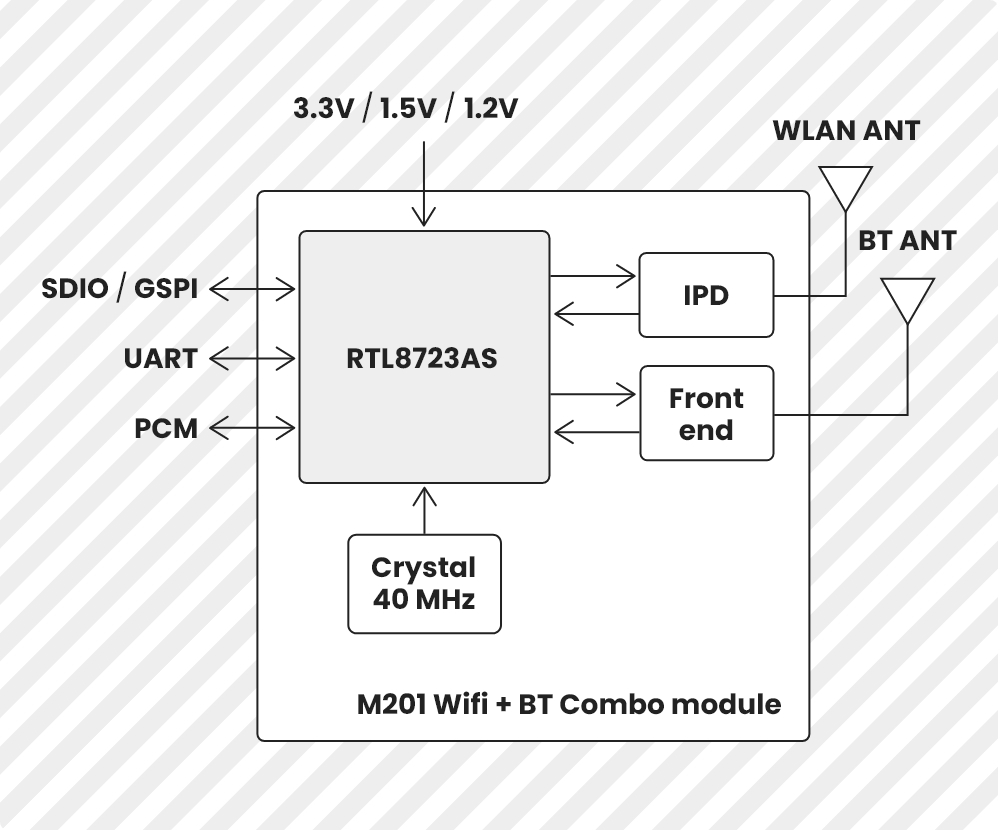

M201 Wifi + BT Combo module

Solution : Realtek 8723AS
Functionality : 802.11 1×1 b/g/n + BT
Size (mm) : 9.2 x 8.3 x 1.1 mm
Package : LGA-52 pin
Power : 3.3v (1.5v / 1.2v optional)
Interface : SDIO / GSPI / UART / PCM

Features :

  • Complies with 802.11 b/g/n
  • Supported 20/40 MHz bandwidth for WiFi
  • Supported SDIO 1.1/2.0/3.0 up to 100MHz clock rate
  • Complies with BT 2.1+EDR/3.0/4.0
  • HS-UART interface compliant with H4/H5
  • Supported WiFi/BT co-existence
  • Single 3.3v Power only

Application :

  • Tablet
  • Set-top box
  • TV Dongle
  • DSC

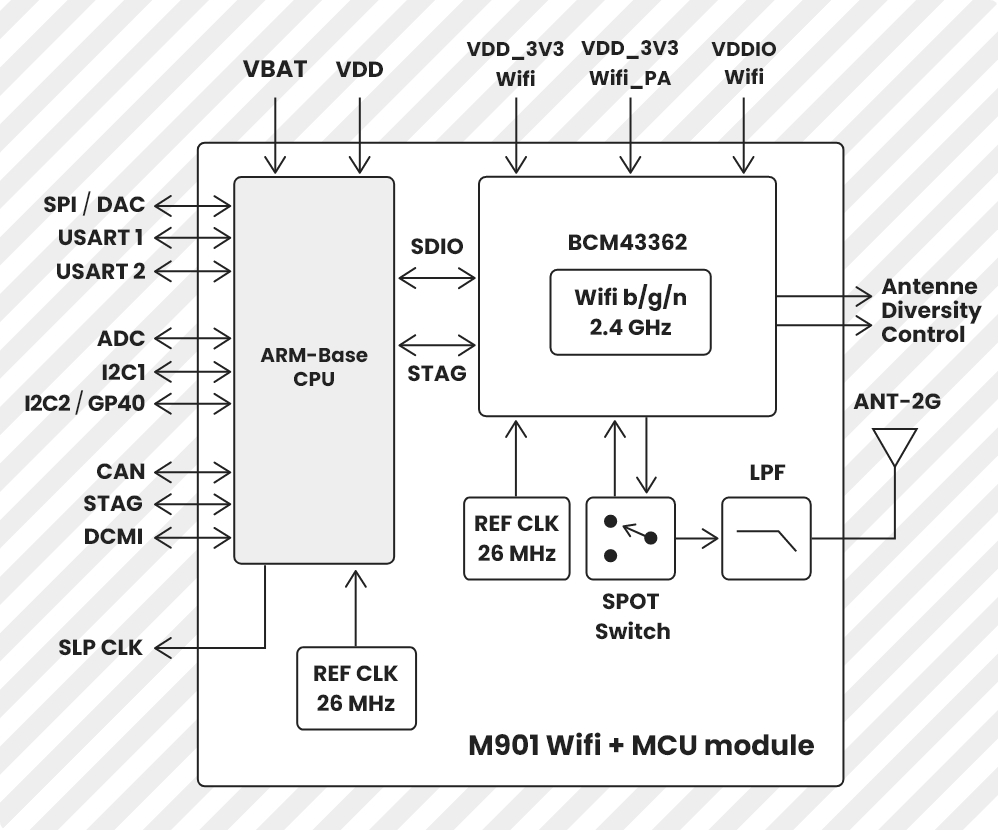

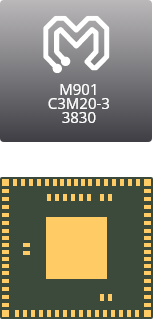

M901 Wifi + MCU module

Solution : BCM43362+ST MCU
Functionality : Programmable
Size (mm) : 10 x 10 x 1.35 mm
Package : LGA-81 pin
Power : 3.3v
Interface : Multi-Interface

Features :

  • MCU : STM ARM 32bit CortexM3 120MHz
  • Complies with 802.11 b/g/n
  • Including WiFi protocol stack
  • Easy use, min. porting effort
  • Single 3.3v Power only
  • RoHS compliant / Lead Free
Application :

  • Home appliance
  • IPC
  • Surveillance
  • …

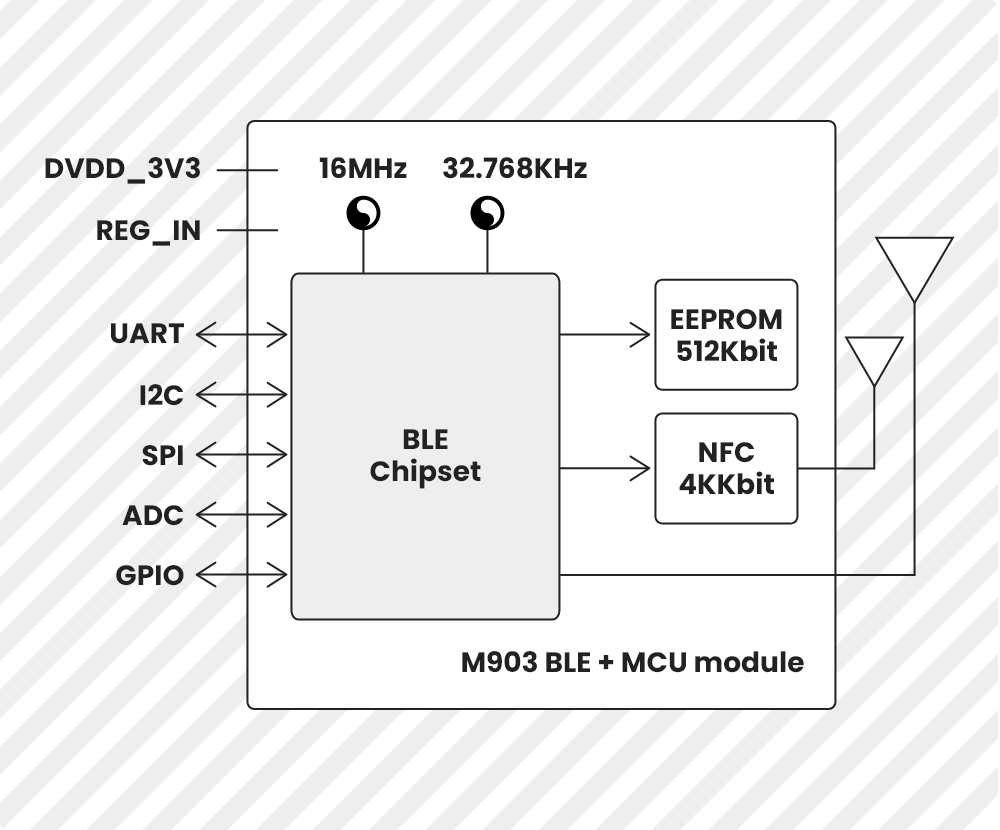

M903 BLE + MCU module

Solution : CSR 1010
Functionality : Programmable
Size (mm) : 9 x 9 x 1.3 mm
Package : LGA-32 pin
Power : 3.3v
Interface : UART / SPI / I2C

Features :

  • Bluetooth 4.0 LE single mode
  • Low power 16-bits microcontroller core
  • Easy use, min. porting effort
  • Single 3.3v Power only
  • –
  • –

Application :

  • Pedometer
  • ECG
  • Glucose Sensor
  • Beacon
  • LED Lighting
  • …

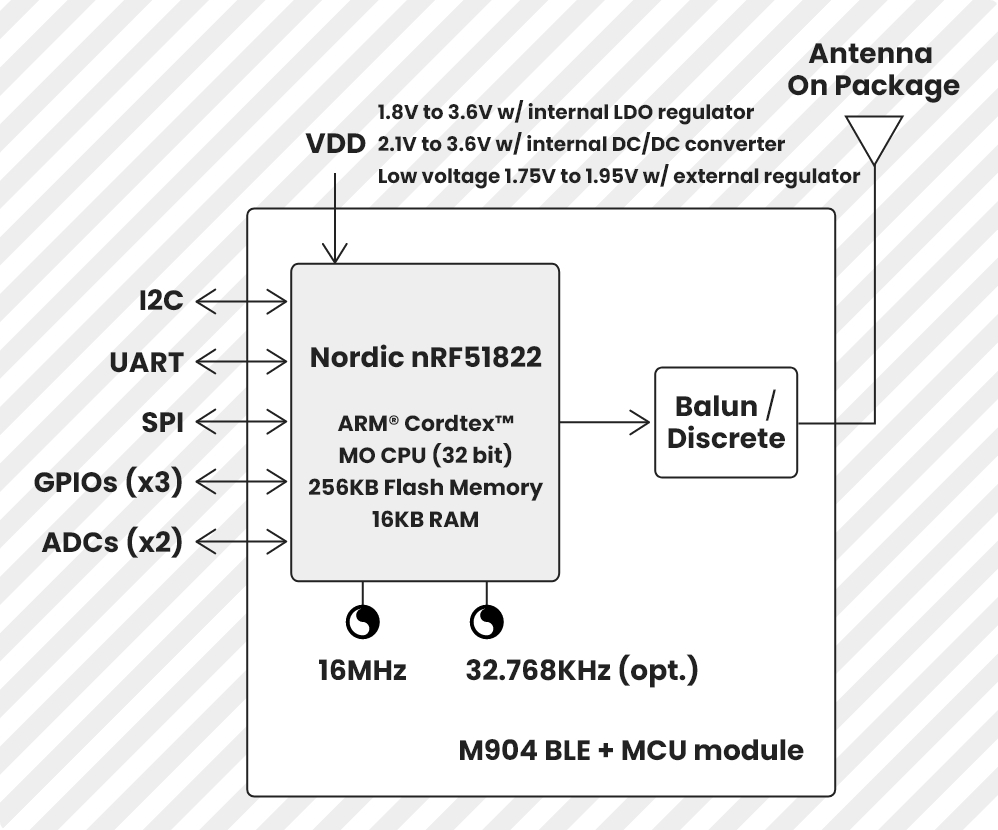

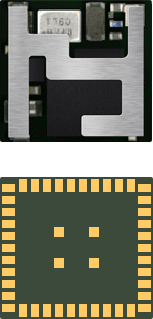

M904 BLE + MCU module

Solution : Nordic nRF51822
Functionality : Programmable
Size (mm) : 6.5 x 6.5 mm
Package : LGA-32 pin
Power : Typ. 3V (1.8~3.6V)
Interface : UART / SPI / I2CC

Features :

  • Bluetooth 4.0 LE single mode
  • ARM® Cortex™-M0 32 bit processor
  • Easy use, min. porting effort
  • Flexible Power Management (1.8˜3.6V)

Application :

  • Wearable
  • Tracker
  • Beacon
  • Toys
  • …

Custom SIP

  • Feasibility Check
  • Simulation
  • Module Design
  • Module Manufacturing
  • Test Program Development
  • Test Production
  • Reliability and Qualification
  • Failure Analysis
